>> SALFORD A9300 full height turnstile

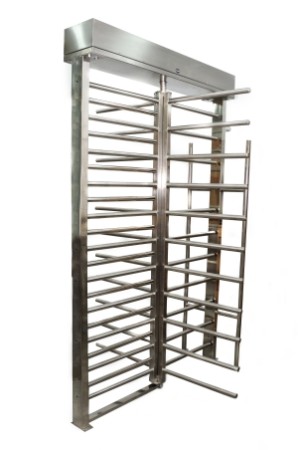

SALFORD A9300 full height turnstile

(PDF Data Sheet)



  • Power supply: 110/230 V AC 50/60 Hz.
  • Consumption: 50 W.
  • Operating temperature: -15ºC a +60ºC.
  • Humidity: < 95%
  • Net weight: 190 Kg.
  • Step width: 60 cm.
  • Access direction: UNIDIRECTIONAL or BIDIRECTIONAL.
  • Flow rate: 30 people/minute.
  • Activation time opening: 100 ms.
  • EMERGENCY system:
  • Automatic turnstile unlocked to power failure.
  • RESTORATION mode: Manual or automatic.
  • INTERFACE: Microcontroller system for the functions and routing of the barrier. Accept signals from external controller.
  • Contact INPUTS: Free of tension.
  • ANCHOR mode: On the finished floor.
  • Manufactured: Stainless steel AISI 304.
  • OPTIONS:
    • Stainless steel tube railings.
    • Console with remote operating control buttons.
    • Shelter cover.
    • Stand for turnstile placement.
    • Technical Support.



SALFORD A9300 full height turnstiles are designed for fast and comfortable operation of the user in both directions. They are indicated for areas that require an access control, attended or unattended, with a high level of security, while generating a large deterrent effect to potential intruders.

Their architecture, designed for very different environments, both indoors and outdoors sheltered from the water is SMOOTH, QUIET, ROBUST and COMPACT. They are equipped with preinstallation to enable INTEGRATION with any access control  electronic devices of any identification technology or manual operation.

SALFORD A9300 full height turnstiles can operate in UNIDIRECTIONAL and BIDIRECTIONAL modes. Its robust and effective drum-shaped design allows the control of step one by one in places where there are intensive movements of people.

In the event of a power cut or power failure, the full height turnstile is unlocked allowing free exit. As an option, also has a ANTI PANIC system with automatic releasing, leaving free rotation for building evacuation. All components used in the manufacture of SALFORD products have been selected to achieve the best results in DURABILITY, STRENGHT and SAFETY.

  • DIMENSIONS (measurements in cm.):

SALFORD A9300 full height turnstile dimensions



 SALFORD Certifications
